heating and cooling ceiling with integrated capillary tube mat OPTIPANEL 15/18 or capillary tube mat ORIMAT S 10 placed on top on site
Deckensegel im Schulungsraum mit blau-grau-grün gestreiften Wänden
SHK Innung Berlin © Clina Heiz- und Kühlelemente GmbH

system description

Design
Clina gypsum board canopies are available in two versions: with integrated capillary tube mat or with capillary tube mat applied on site on the canopy.

The gypsum board canopies are suspended freely in the room from the ceiling. On the visible side, there are perforated or unperforated gypsum board canopies floating freely in the room, revealing views of the concrete ceiling. The system is used for the dissipation or supply of sensitive heat loads. The water circulates noiselessly in the capillary tube mats and regulates the room temperature largely by radiation, partly by convection.

Gypsum board panel & Capillary tube mat
For the version with integrated capillary tube mat, OPTIPANEL 15/18 consisting of a 12,5 mm unperforated/perforated gypsum board panels and the capillary tube mat OPTIMAT GB 15/GB 18 are used.

For the version with the capillary tube mat applied on site the ORIMAT S 10 or G 10 is recommended.

Length & Width
The capillary tube mats are custom-made in length and width for each project, the dimensions are 10-20 mm smaller than the inner dimension of the gypsum board canopies.

Hydraulic connection
The connections of the capillary tube mats or canopies to each other as well as the connection to the supply and return lines/ceiling sub-distributors are usually made on site using a proven push-lock system with flexible hoses.

Mounting
In the case of the applied on site version, the capillary tube mats manufactured according to the dimensions of the canopy are fixed between the profiles of the substructure of the canopy.

For the integrated version, the capillary tube mats are already inserted, see description in chapter „Prefabricated product“ page 2.

Processing
According to the common rules of drywall construction. Active and inactive surfaces can be easily combined. The edge design of both versions is made with drywall mouldings.

Lamps & Ventilation
Lamps can be perfectly integrated.

Regulation
The system can be regulated room-by-room.

Fields of application
Suitable for modern interior finishing of rooms with special architectural, acoustic and aesthetic requirements, such as office buildings, residential buildings, public buildings, whether new construction or renovation.

structure

Section view floating drywall ceiling with CRM ORIMAT laid on top_with edge design

View of a canopy section: gypsum board canopy with capillary tube mat applied on site

In the case of then applied on site version, capillary tube mats manufactured according to the dimensions of the canopy are fixed between the profiles of the substructure of the canopy. For the integrated version, the capillary tube mats are already inserted, seedescription in chapter „Prefabricated product“.

The edge design of both versions is made with drywall mouldings.

The gypsum board canopies are suspended freely in the room from the ceiling.

The connections of the capillary tube mats or canopies to each other as well as the connection to the supply and return lines/ceiling sub-distributors are usually made on site using a proven push-lock system with flexible hoses.

prefabricated product • recommended capillary tube mat

integrated capillary tube mat (OPTIPANEL 15/18)

In an unperforated or perforated 12,5 mm gypsum board panel, parallel slots are milled on the back at a distance of 15/18 mm. The capillaries of the capillary tube mat OPTIMAT GB 15/18, consisting of a round mat distributor pipe (20 x 2,0 mm) and capillary tubes
(4,3 x 0,8 mm), are inserted into these slots. The distance between the capillary tubes (centre-to-centre distance) is 15/18 mm.



To the prefabricated product OPTIPANEL 15

To the prefabricated product OPTIPANEL 18



capillary tube mat applied on site (ORIMAT S 10)

The ORIMAT S 10 consists of 2 round mat distributor pipes (20 x 2,0 mm) and capillary tubes (3,4 x 0,55 mm).

The constant distance between the capillary tubes (centre-to-centre distance) is 10 mm and is guaranteed by the omega ribbons.



To the capillary tube mat ORIMAT

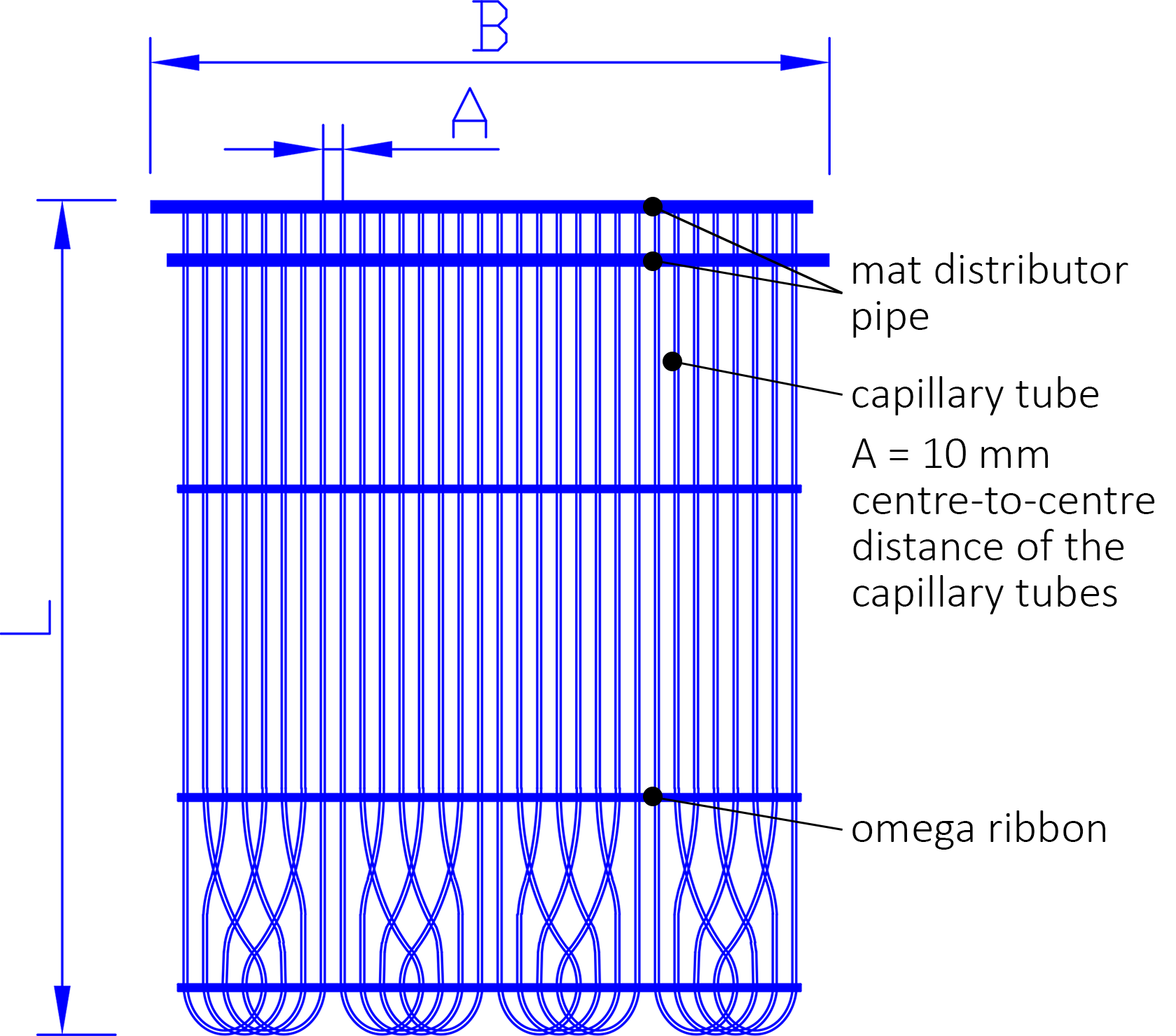

ORIMAT S 10 with labelling_Clina capillary tube mat

ORIMAT S 10

advantages

Cooling and heating with one system
In most buildings, the heat requirement to be covered is so low due to the well-insulated building envelope that capillary tube mats invisibly integrated into drywall canopies not only provide excellent cooling in summer, but can also heat very comfortably and energy-efficiently in the cold season.

High degree of prefabrication
Factory prefabrication ensures quality, function and thermal performance.

Good acoustics - perforated version
The capillary tube mat does not require any heat-conducting profiles that would cover the perforation and thus reflect the sound. The open construction helps to improve the acoustics in the room. The sound absorption values of the drywall canopies specified by the manufacturers are maintained without restriction.

High performance
The open design allows more convection.

Optimized room comfort
Gypsum board canopies noticeably and efficiently improve room comfort both thermally and acoustically.

Free design possibility
The application with gypsum board canopies is an excellent solution for spaces with special architectural requirements, such as conference rooms, cinemas or open-plan offices. The metal canopies can be freely adapted in shape and colour as well as in the arrangement according to the requirements.

Easy retrofitting
Clina capillary tube mats turn any drywall floating ceiling into a heating and cooling floating ceiling, quickly and economically.

Individual room control
The system can be regulated room-by-room.

Maximum degree of activation
The dimensions of the capillary tube mat are individually adapted to the size of the canopies.

values

HEATING CAPACITA

according to DIN EN 14037/5

COOLING CAPACITY

according to DIN EN 14240

ACOUSTICS

(applies only to perforated version)

depending on the design

depending on the design weighted sound absorption coefficient as specified by the manufacturer of the drywall canopies

INSTALLATION HEIGHT:

with capillary tube mat
applied on site depending
on the kind of drywall canopy and substructure

with integrated capillary tube mat depending on the kind of substructure

12,5 mm OPTIPANEL 15

12,5 mm OPTIPANEL 18

SYSTEM WEIGHT:
(filled with water)

with capillary tube mat applied on site 1 kg/m² plus drywall canopy, substructure and insulation

with integrated capillary tube mat

11 kg/m² OPTIPANEL 15 plus substructure and insulation

9 kg/m² OPTIPANEL 18 plus substructure and insulation

PRESSURE STAGE:

PN 10
